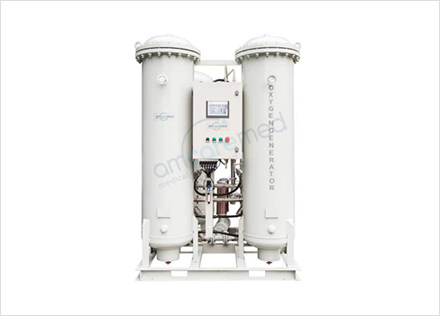

• Oxygen Generators Capacity: 3Nm3/h~100Nm3/h( single unit)
• Medical Oxygen Purity: 93%±3% (with PSA technology)
• Power supply: 380V/220V
• Very simple and easy to installed
• Latest components to ensure smooth performance
• Oxygen for medical use is the best alternative to liquid supply for filled cylinders
• Out Pressure: 3~0.55 Mpa (adjustable)
• Operation Noise: ≤85dB(A)

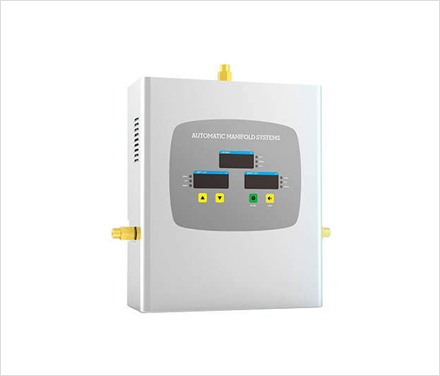

• LED Display full automatic manifold
• Closed box without interference
• Stainless steel diaphragm reducer, better to control flow
• With alarm system and remote alarming
• Open design to meet requirements for expansion in future
• Sustainable supply and control circuit when the power failure
• Input: 15Mpa, output: 200m3/h,0.4-0.8Mpa
• Input/output signal: 4–20mA, 485bus communication
• Wall or floor mounts available
• 100% pressure test, safe and reliable

• Schneider brand control panel

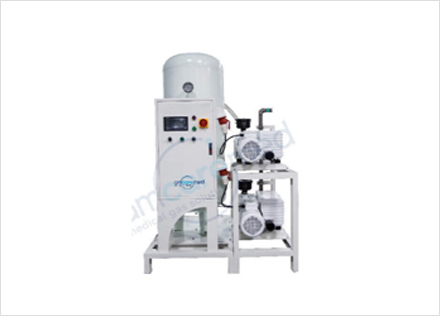

• Application: Medical or Laboratory
• Technology: rotary vane
• Available in Simplex, Duplex, Triplex, or Quadruplex
• Different capacity receiver tank available
• Minimal maintenance, Maximum Durability
• LCD control panel to show vacuum information
• Completely tested before shipment

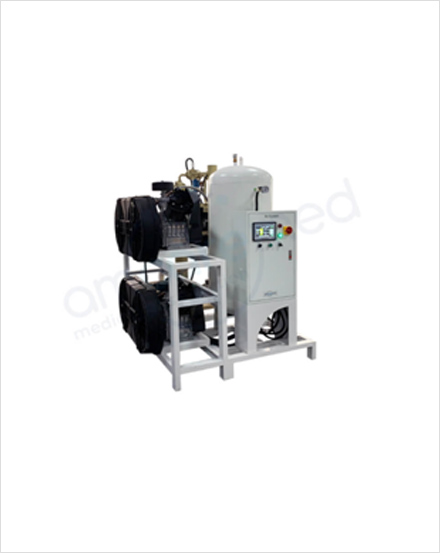

• Provide 100% oil-free air, any oil does not come into the compressing chamber
• Dew point temperature: – 23°C ˉ – 46°C
• Exhaust diameter G1/2 “, G3/4″, G1″, G1-1/4”
• Filter: pre-filter 1, pre-filter 2, pre-filter 3, bacterial filter
• The whole medical air compressor system is packaged and shipped for quick and easy installation, turn on the power to start running
• The system is compact and has a small footprint
• High-quality air-end The air-end structure is very compact, the number of main parts is 1/10 of the piston type, also less than the screw type air compressor. The low-pressure
• structure and the frame structure optimize the bearing force; Using asymmetric lines, the exhaust gas is continuously stable. The waist-type exhaust port avoids the energy loss of over-compression or under-compression.
• Intelligent control system The intelligent control system uses the liquid crystal display screen, can remote control and multiple hosts chain control. The system adopts PLC control, displays all status information. The number of compressor operating unit automatically increased and decreased while ensuring the required amount of compressed air so as to ensure the steady supply air to the system.

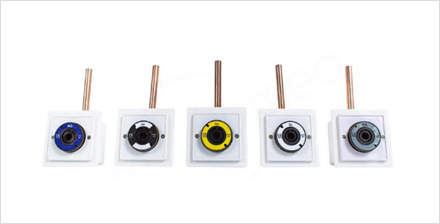

Japanese standard(JIS) medical gas outlet includes wall mount type and rough-in assembly type. Wall mount type is using installed on the wall, available in plastic and metal covers. Rough-in assembly type is using on the bed head unit. Connector with JIS adaptor could use oxygen flowmeter with humidifier bottle and suction regulator. In order to prevent a cross-connection, the different gas types with different quick connections. 100% tested and individually packaged. You can choose the gas type in the box and we finished according to your need.

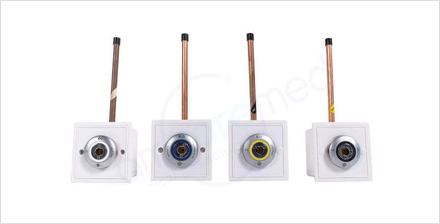

British Standard Medical Gas Outlets are installed at medical gas systems delivery points. The base part made of brass alloy. Twice outlet connection. With shut-off valve can maintain without having to interrupt gas delivery to other outlets. Only accept British standard (BS) quick connect adapters. Different gas type with different quick connect adapters.

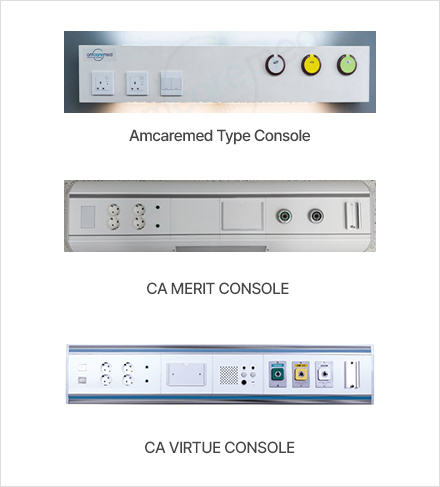

• Panel color and pattern can be customized according to customer requirements
• Added gas terminal cover to keep the gas terminal clean and hygienic
• Continuous single or double side lamps are available, adding an aesthetic appreciation
• Designed in accordance with HTM2022 standard
• Length according to request
• Can be customized and upgraded to meet your need
• Easy to install and maintain
• Applications: general wards, ICU, PACU, ED/TRAUMA

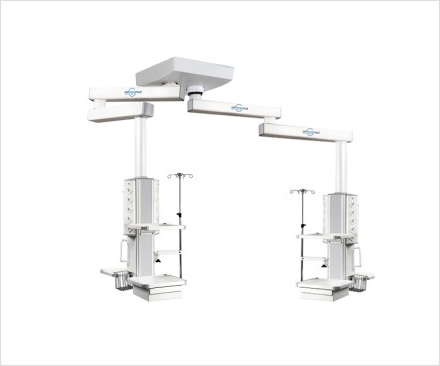

• Horizontal arm adjustable dimensions
• Aluminum profile
• Ceiling plate support system
• Load capability: 220 kg
• All of the equipment and others should be far from the floor, not take space of ICU Floor
• The head of the pendant supplies emergent gas supply, control the cable, and down the risk of cable issue
• Led lighting, supply good service for the hospital, and good light environment
• More monitor tables, gas outlets, electric and drawers can be adjusted according to customer needs

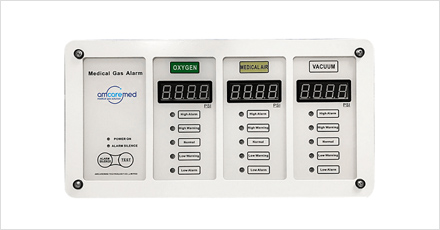

• Sensor high accuracy
• Using a 0.8 -inch nixie tube display pressure, LED display directly and clear to read.
• Glass Panel, Ultra-thin, and beauty, easy to install
• Sampling points distance up to 1000 meter
• 100% tested to ensure accuracy

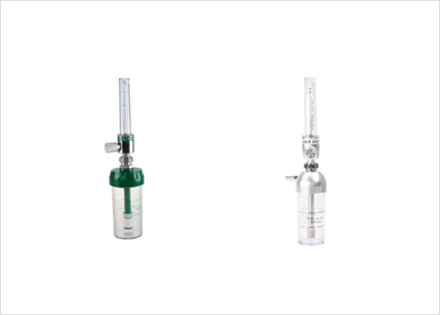

• Made of copper, CNC precision processing
• Flow tube and humidifier body use high-strength polycarbonate plastic, the ball is stainless steel
• High-temperature resistance
• Backpressure compensated and calibrated at 50 psi
• Installed can be wall or rail mounted
  Input pressure: 4.5bar ± 0.5bar
  Accuracy: ± 5% read value
  Standard inlet connection: ISO G1/8“

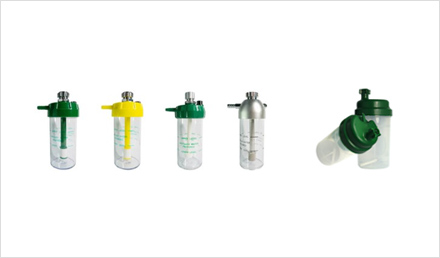

• Volume: 200 ml
• Weight: 0.125kg(AS) , 0.335kg(aluminum)
• Simple operation, easy to disassemble and clean
• Max applicable pressure: 450kpa
• Relief valve triggers: 350kpa-400kpa
• Max sterilized temperature in autoclave at 121oC under pressure 210kpa

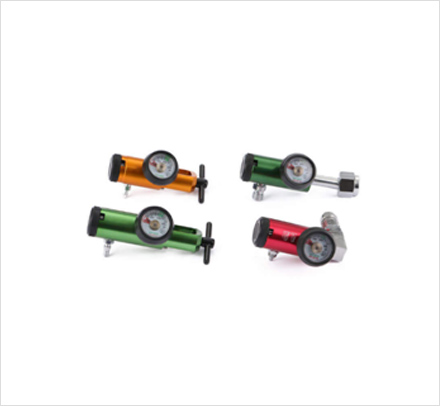

• Piston design regulator
• Sintered bronze inlet filter for longer service life
• Easy to read flow rate window
• Selection of 0-1 0-2 0-4 0-6 0-8 0-15 0-25 each with 12 flow settings
• Alternative color (green, blue, yellow)

• Volume: 200 ml
• Weight: 0.125kg(AS) , 0.335kg(aluminum)
• Simple operation, easy to disassemble and clean
• Max applicable pressure: 450kpa
• Relief valve triggers: 350kpa-400kpa
• Max sterilized temperature in autoclave at 121oC under pressure 210kpa

• Specifications

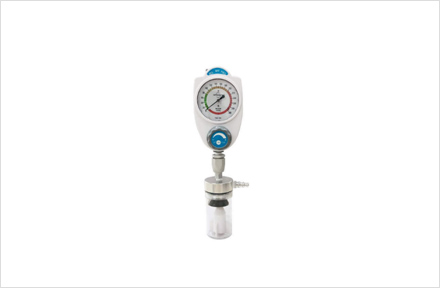

• Durable high-quality ABS protective body and easy to clean
• Shell Color: White
• Large Control Knob provides quick, easy setting
• Available with overflow safety trap
• Available gauges: 0 – 300mmHg, 0 – 760 mmHg
• Gauge accuracy: ±10%
